HOLLOW FACE SHARPENING MACHINE FOR THE CIRCULAR SAW BLADES WITH TUNGSTEN CARBIDE TEETH
HIGHLIGHTS
- 2 CNC axis for automatic work programmable from the control panel
- Programmable tooth pitch
- Very compact machine with a wide range of disc diameters: from ø8,26" to ø25,59"
ELITE MVB 650. THE CONCEPT.

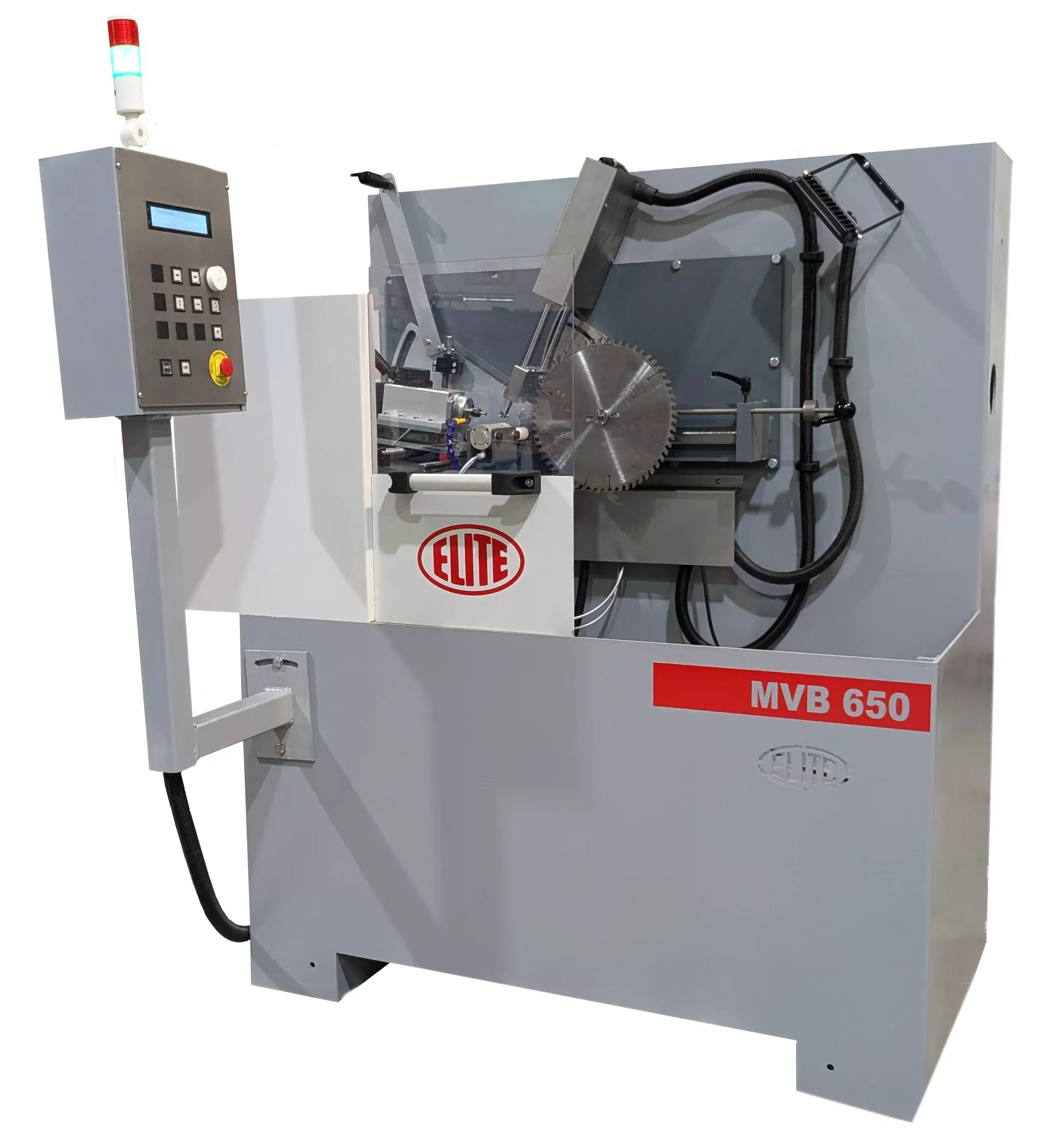

The ELITE MVB 650 model is our machine for the sharpening of the hollow face teeth on carbide circular saws. It comes in a half enclosure configuration that makes it especially economical for workshops that require a good return of investment.
For saws from ø8,26" to ø25,59"
Automatic operation using 2 CNC axis:
- A: Tooth indexing
- X: Sharpening travel
Manual axis:
- Y: Saw blade body thickness
- Z: Stock removal
- B: Face angle
The design of the cabin ensures particularly easy access for quick adjustment of the machine's preparation for sharpening.
ELITE MVB 650. HOW IT WORKS

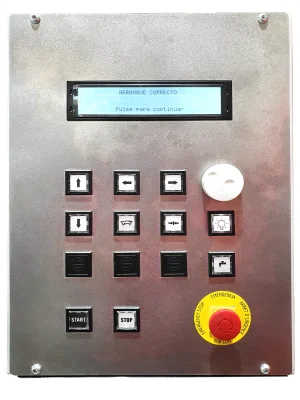

Easy to use control panel
The control panel with LCD screen allows the programming of the machine. Among the programmable values we highlight:
- Sharpening path
- Sharpening speed
- Tooth pitch
- Indexing speed of the tooth indexing finger
- Number of teeth
- Broken teeth
All the functions of the buttons are explained in the buttons with illustrations and every button is intended to do a single task. So you know what to expect from a button press.

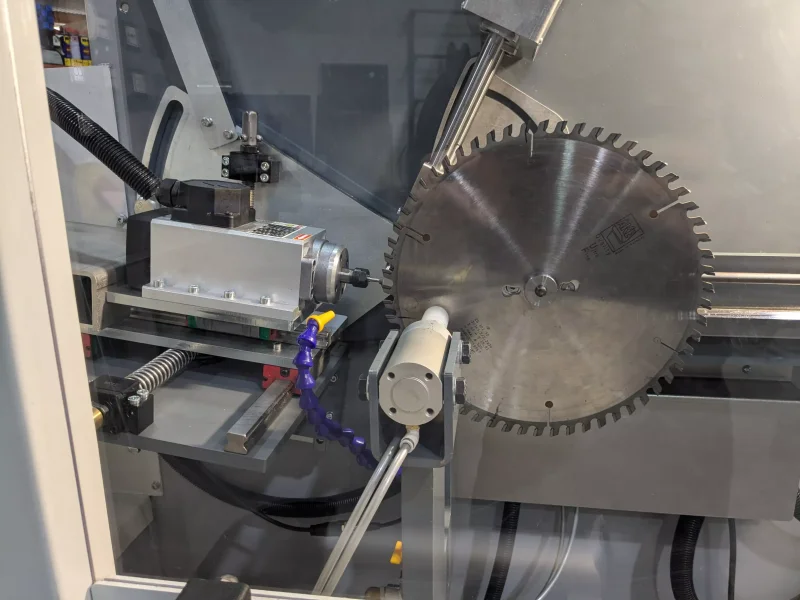

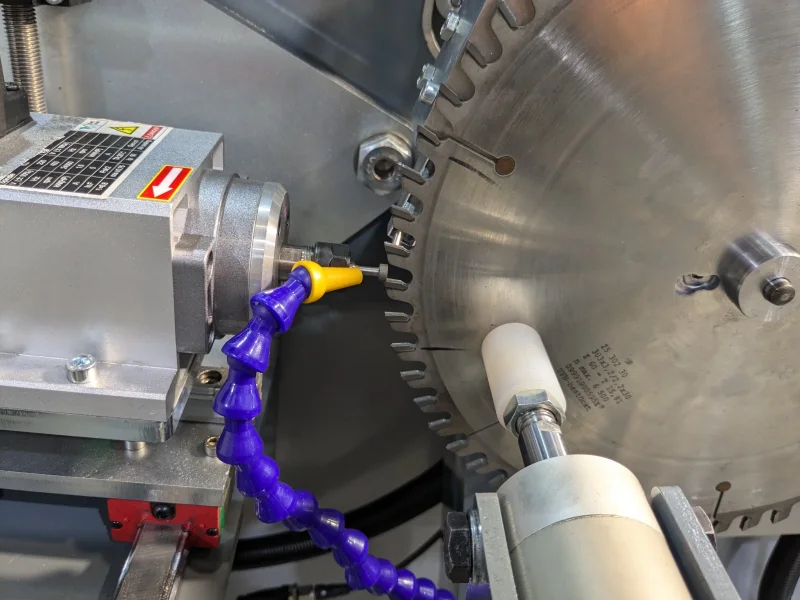

Sharpening group

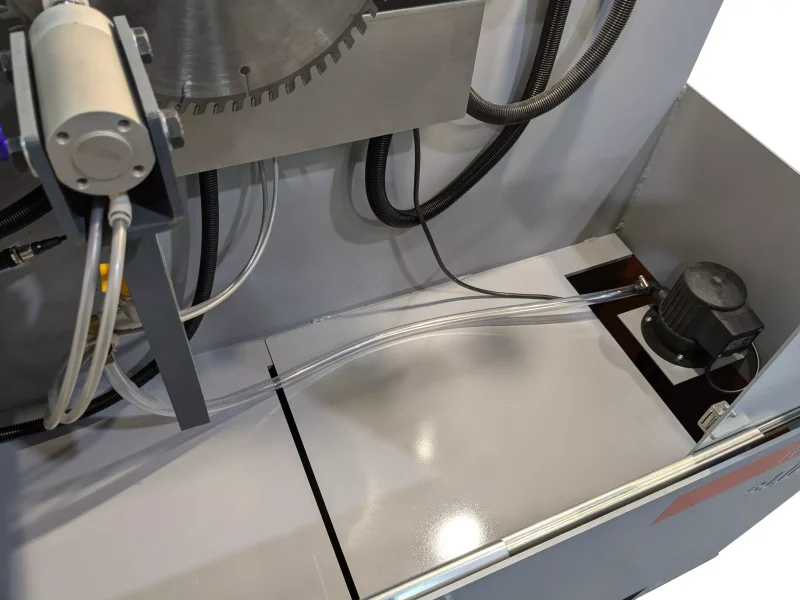

Integrated refrigeration equipment
It allows wet sharpening with water-soluble coolant or grinding oil for better sharpening quality and longer grinding wheel life. for better surface quality and longer grinding wheel life.
Integrated coolant system with 220-liter tank and removable grates for easy cleaning.
Easy access

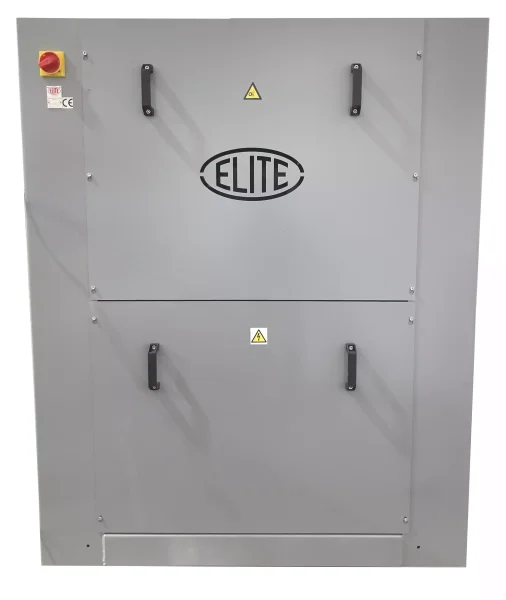

Clean design and easy access for servicing or repairing the machine.

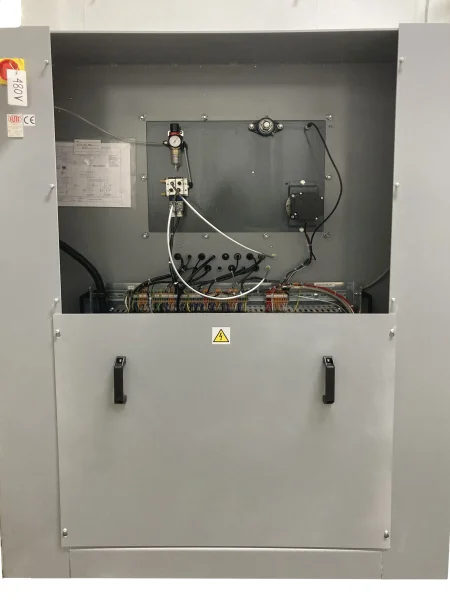

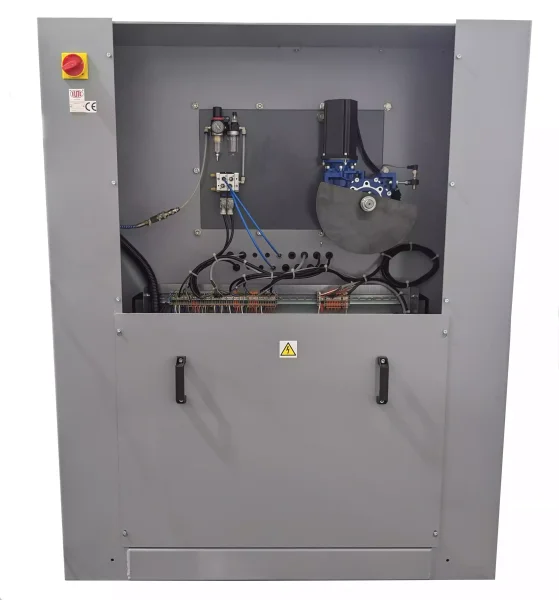

Easy maintenance

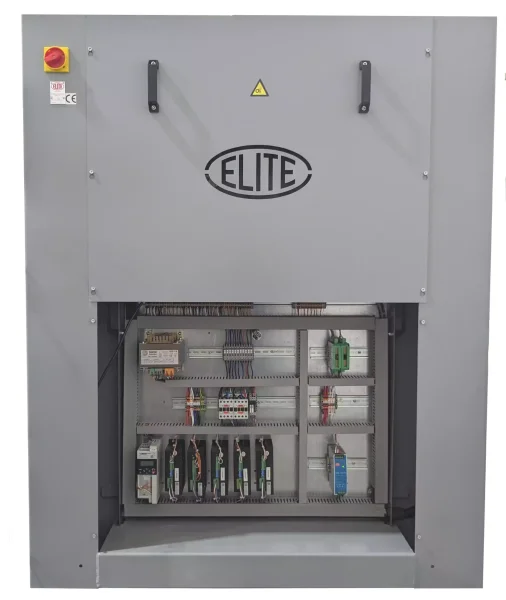

The electrical panel is located at the bottom and the mechanics at the top of the machine, protected by an easy-to-open cover.

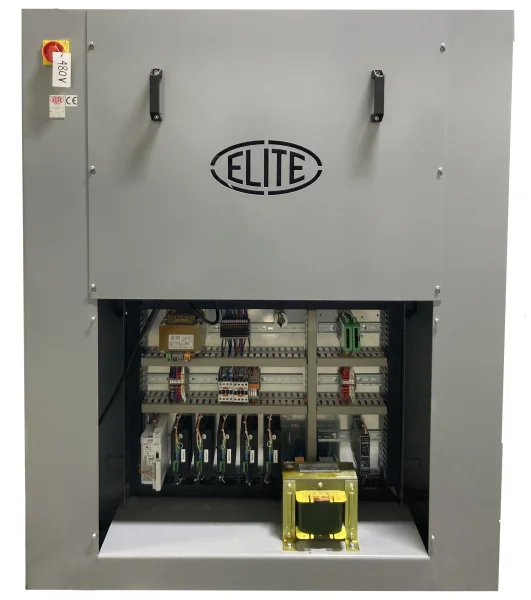

The electrical panel is organized in a clean way, so maintenance is simple when necessary.
ELITE MVB 650. EQUIPMENT INCLUDED
- Grinding pin collet holder ø0,23"
- Indexing pin of the feeding pawl ø0,11"
- Device for serial sharpening of equal diameters.
- Half enclosure.
ELITE MVB 650. SPECIFICATIONS
| TECHNICAL DATA | MVB 650 |
|---|---|
| Saw blade outside diameter | From ø8,26" to 25,5" |
| Saw blade bore diameter | From ø0,39" |
| Blade thickness | Up to 0,31" |
| Tooth pitch | Up to 4,9" |
| HOLLOW FACE GRINDING | |
| Grinding path | Up to 0,98" |
| Grinding angle | From 0º to +30º |
| OTHER DATA | |
| Grinding wheel motor | 1,5 kW |
| Grinding wheel speed | 24000 RPM |
| Grinding wheel pin shaft diameter | ø0,23" |
| 2 CNC axis | A: feeding pawl - X: sharpening path |
| Machine dimensions | 1440 x 1285 x 1600 mm. |
| Machine weight | 520 kg. |
TECHNICAL REQUIREMENTS
6 bar pneumatic air connection required.
Connection voltage: 220V 2Ph 50/60Hz
Required connection power: 1.5 kW
RECOMMENDED OPTIONAL ACCESSORIES
- Saw holder for circular saw blades external ø7.8"–17.7", ø15,7"–25,5", and ø23,6"–33,4".
- Centering rings for circular saw blades bore of various sizes.
- Reinforced saw holder device

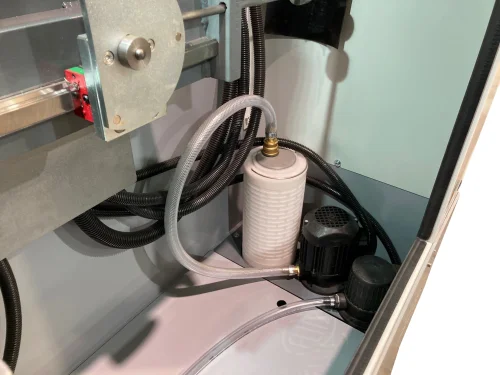

- Filtration system: ELITE FILTRAmaq UNO, SOLO, or PRO models. Filtration down to 2 µm. Recommended for improved sharpening quality.

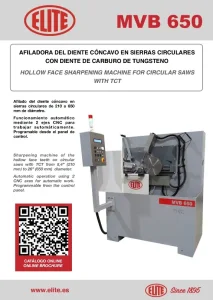

DOWNLOAD LEAFLET
