STEEL RELIEF GRINDING AND SHARPENING OF FACE AND TOP FOR TUNGSTEN CARBIDE TOOTH CIRCULAR SAWS UP TO ø33,4".
HIGHLIGHTS
- 4 CNC axis for automatic work programmable from the control panel
- Programmable tooth pitch
- Steel relief grinding of the saw body
- Sharpening the top and face of flat teeth
- Very compact machine with a wide range of disc diameters: from ø3,93" to 33,4".
ELITE MVB 850. THE CONCEPT.
The ELITE MVB 850 is our flat top and face tooth sharpening machine which can also grind the steel relief of the back of the carbide-tipped circular saws. For saws from ø3,93" to 33,4".
Its special configuration makes it the ideal machine for the sharpening workshop. It not only allows the relief of the saw body, but also allows the sharpening of the top and face of the tooth in the flat teeth geometry. This double function allows for greater use, which implies a much faster amortization of the cost of the machine.
Automatic operation using 4 CNC axes:
B: Tooth angle
A: Tooth indexing
Z: Sharpening path
X: Sharpening load
The optimal design of the enclosure guarantees quick positioning of the saw blade.

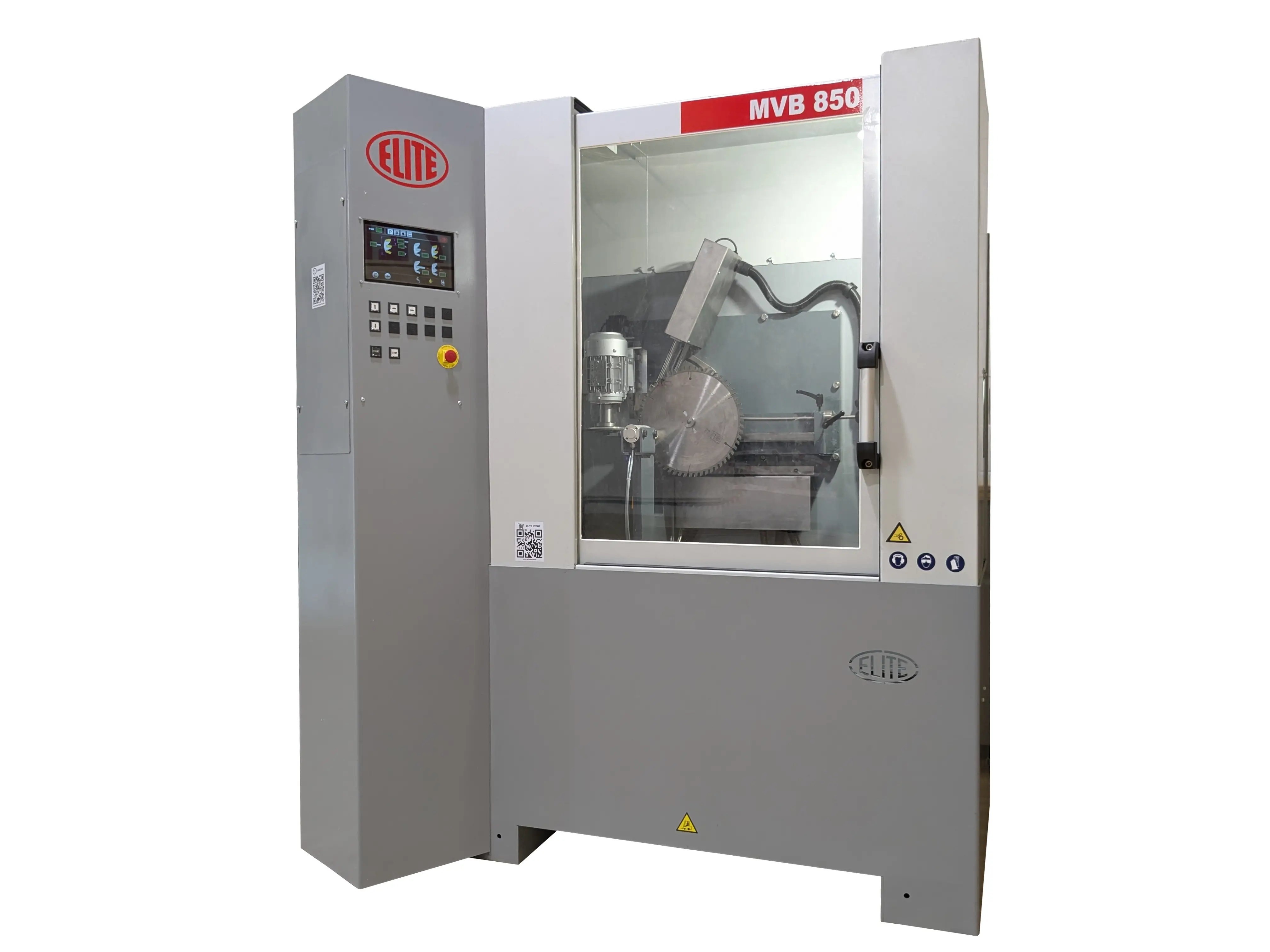

Machine overview
ELITE MVB 850. HOW IT WORKS
Easy to use control panel

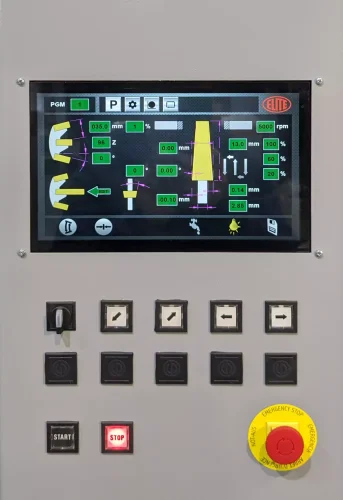

Easy-to-use control panel with LCD color touch screen that allows programming of the machine. Among the programmable values are:
- Tooth angle programming: The grinding wheel axis will automatically move to the value entered in the program.
- Sharpening path
- Sharpening load
- Sharpening speed
- Tooth pitch
- Indexing speed of the tooth feeding pawl
- Number of teeth
- Broken teeth

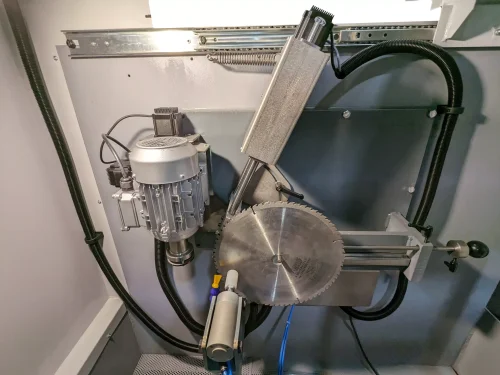

Sharpening group
Back-off grinding
All the movements has been optimized to reduce downtime.
Face Grinding
Top sharpening
Sharpening the saw when there are broken teeth

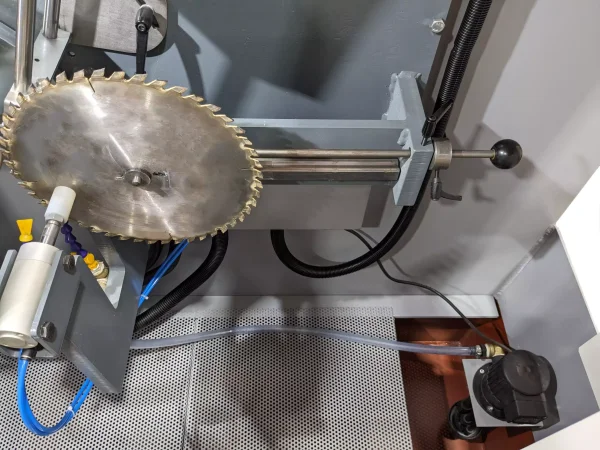

Integrated refrigeration equipment
Machine operates with water-soluble coolant or grinding oil for better sharpening quality and longer grinding wheel life.
Integrated coolant system with 220-liter tank and removable grates for easy cleaning.
Easy access and maintenance

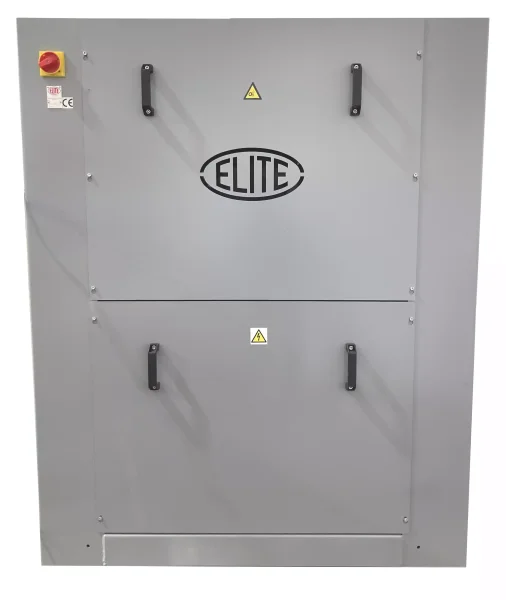

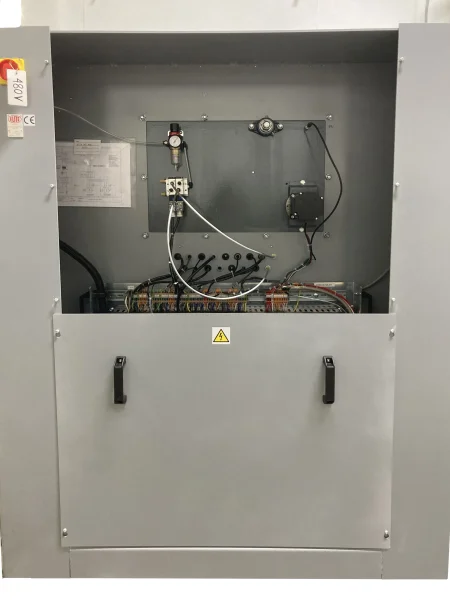

At the back of the machine we find the electrical panel at the bottom and the mechanical system at the top, both protected by their corresponding easy-access panel, which also reduces the total space needed for the machine.
ELITE MVB 850. EQUIPMENT INCLUDED
- Grinding wheel holder for face and back sharpening wheels
- ø3 mm. indexing finger feed pawl
- Lighting of the work area using LED lamp
- Device for sharpening saws of equal diameters
- Machine with full enclosure.
- Prepared for connection to an individual or centralized filtration system.
ELITE MVB 850. SPECIFICATIONS
| TECHNICAL DATA | MVB 850 |
|---|---|
| Saw blade outside diameter | From ø4" to 33,5" |
| Saw blade hole diameter | From ø0,39" |
| Saw blade thickness | Up to 0,31" |
| Tooth pitch | Up to 4,92" |
| STEEL RELIEF GRINDING | |
| Grinding path | Up to 0,98" |
| Grinding angle | From 0º to +35º |
| TOP GRINDING | |
| Tooth shape | Flat |
| Clerance angle | From +5º to +25º |
| Bevel angle | 0º |
| Grinding path | Up to 0,98" |
| FACE GRINDING | |
| Hook angle | From -10º to +20º |
| Grinding path | Up to 0,98" |
| OTHER DATA | |
| Grinding wheel motor | 2 HP |
| Total connected power | 2.5 kW |
| Grinding wheel speed | 2800 RPM |
| Grinding wheel diameter for back-off grinding | ø175 mm. |
| Grinding wheel diameter for top grinding | ø5,9" |
| Grinding wheel diameter for face grinding | ø6,8" |
| 4 CNC axis | B: Tooth angle - A: feed pawl - X: sharpening load - Z: sharpening path |
| Machine dimensions | 1650 x 1200 x 1900mm. |
| Machine weight | 560 Kg. |
TECHNICAL REQUIREMENTS
6 bar pneumatic air connection required.
Connection voltage: 220/400V 2Ph 50/60Hz
Required connection power: 2.5 kW
RECOMMENDED OPTIONAL ACCESSORIES
- Saw blade holders for circular saw blades with outer ø7.8"–17.7", ø15,7"–25,5", and ø23,6"–33,4".
- Centering rings for circular saw blades bore hole, in different sizes.
- Reinforced saw holder device
- Mist extraction equipment.
- Equipment for oil operation.

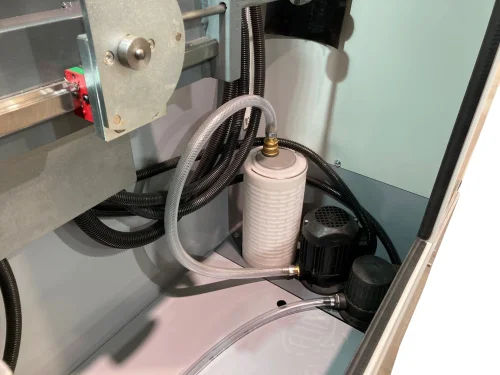

- Filtration system: ELITE FILTRAmaq UNO, SOLO, or PRO models. Filtration up to 2 µm. Recommended for improved sharpening quality.
